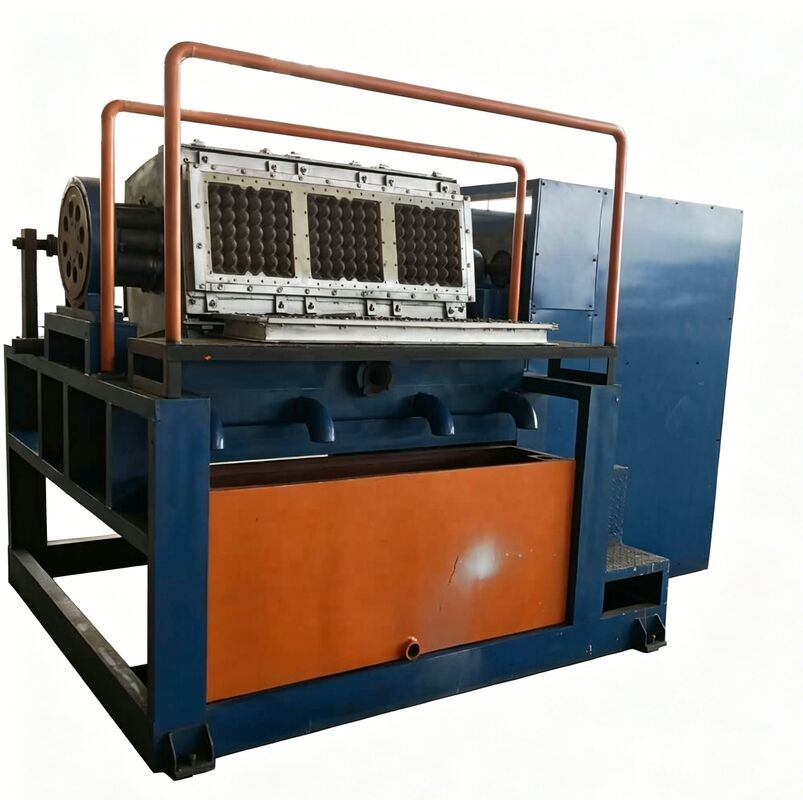

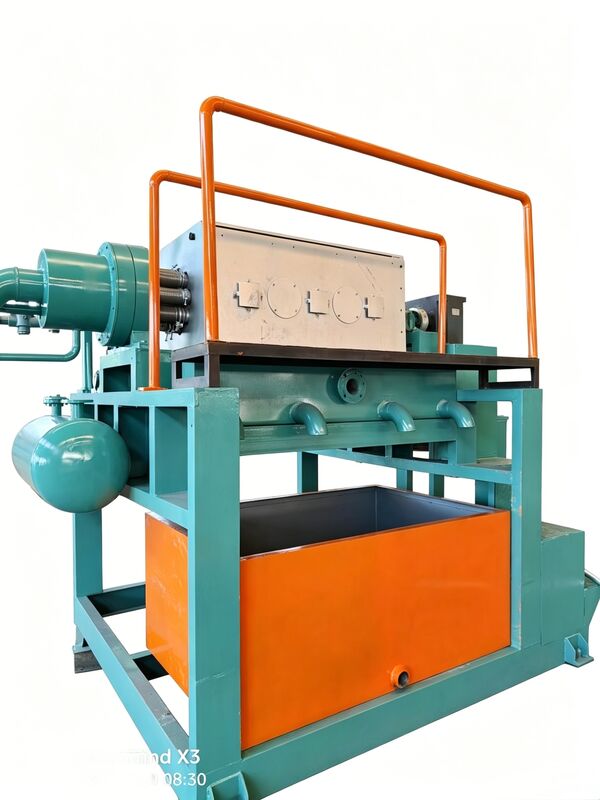

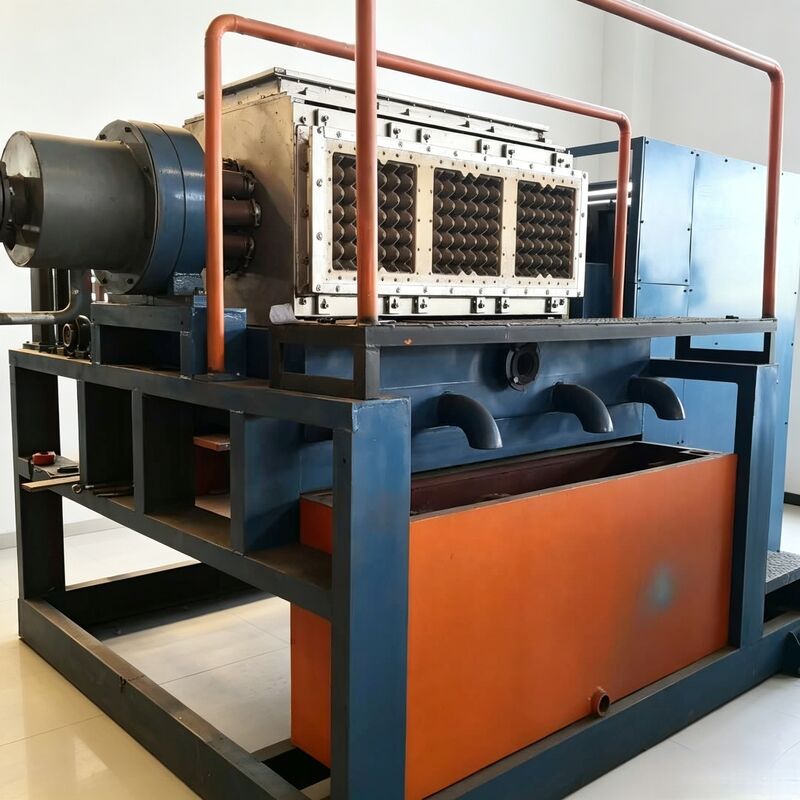

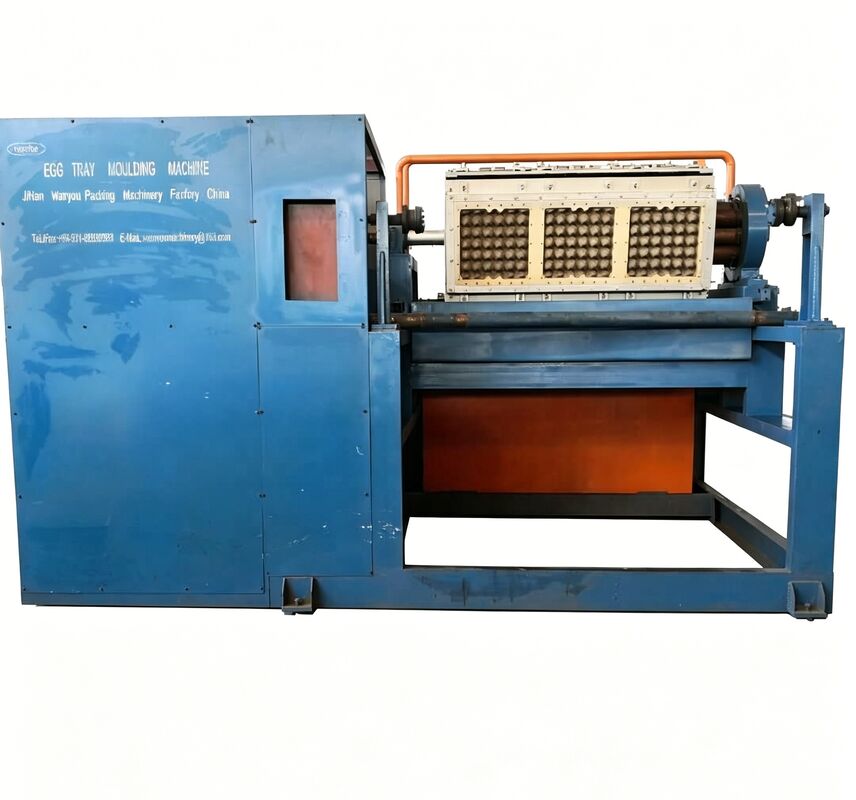

Full Automatic Egg Tray Making Machine |3*4 Molds Rotary Egg Tray Machine Low Investment, Zero Waste, High Profit for SMEs 2000pcs/h Output
3×4 Rotary Egg Tray Production Line | 2000PCS/H Output for 30-Cell Trays
Full Egg Tray Production Line with Pulping, Forming, Drying & Automatic Stacking
Perfect for Small Businesses & Startups
This 4-sided rotary drum egg tray machine is a cost-effective entry-level solution specially designed for SMEs and new startups.
Equipped with 3 molds per side, it delivers a stable output of 2000 pieces per hour for 30-cell egg trays.
The full integrated production line covers pulping, forming, drying and automatic stacking, featuring compact structure, easy operation and low operating cost.
It is an ideal choice for beginners to start a profitable paper egg tray machine business.
Production Flow
Waste Paper Pulping → Vacuum Forming on Rotary Drum → Drying Treatment → Automatic Stacking → Finished Products
The main sections of the egg tray production line:
1.Pulping system:

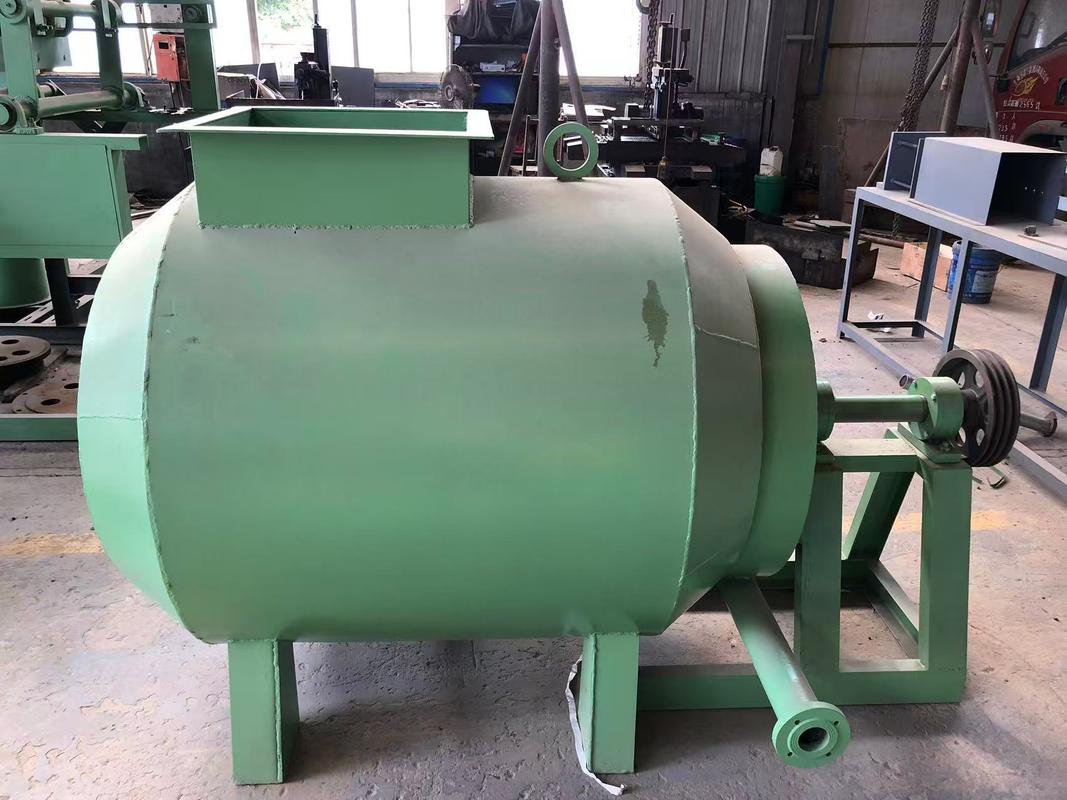

Including the hydrapulper,pump,mixer, vibrating screen, etc..to make the wastepaper into pulp.
2. Forming system:

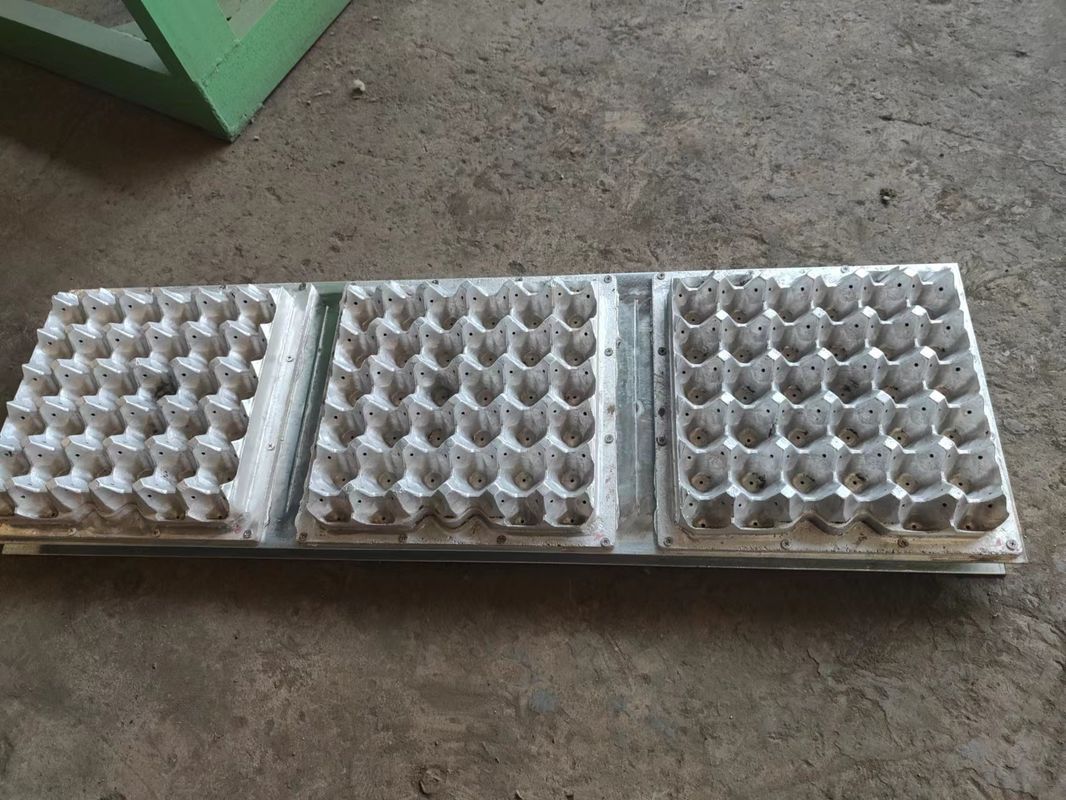

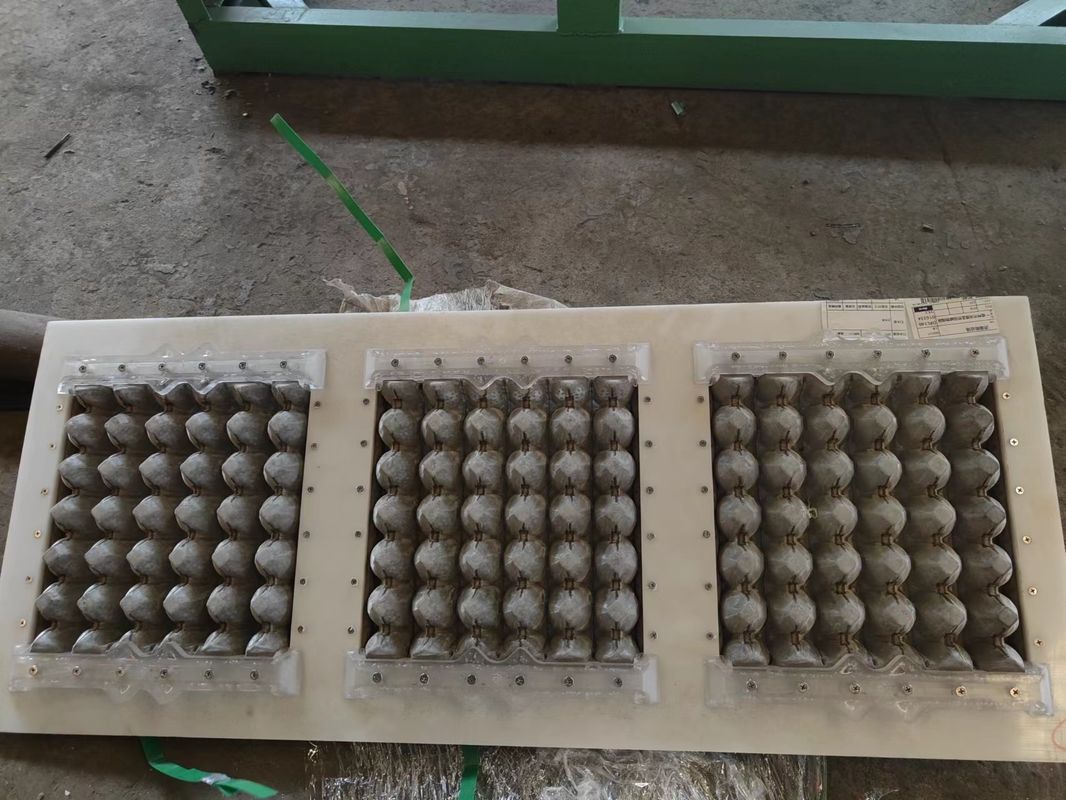

Including the molding machine,egg tray forming molds, vacuum pumps, air compressor and electrical controller to make the pulp into wet trays.
3.Drying system:
Including the oven,chains,trays,heating pipes,fans,boiler,etc..to dry the wet trays so they can be used directly.
4.Automatic Stacker:
After drying line, the egg trays go to the automatic counting and stacking system, you can preset the quantity of one pile, such as 100pcs or 200pcs. When the quantity okay, it will be alarm. The products stacked at the same time. You can packaged them directly.
Core Advantages
1. Startup-friendly & Cost-efficient: Reasonable investment, small floor space and low energy consumption, quick return on investment.
2. Stable Rotary Structure: 4-sided drum with 3 sets of molds, continuous running and uniform product quality.
3. Easy Operation & Maintenance: Simple control system, few workers required, low daily maintenance cost.
4. Eco-friendly Raw Material: Runs on waste paper, cardboard and scrap paper; finished egg trays are biodegradable and widely accepted globally.
Technical Parameters:
| Item |
Specification |
| Machine Type |
3×4 Rotary Drum Egg Tray Machine |
| Rated Output |
2000 pieces/hour (30-cell egg tray) |
| Mold Layout |
3 molds per side, 4-sided rotary drum |
| Raw Material |
Waste paper, cardboard, scrap paper |
| Applicable Products |
30-cell paper egg tray |
| Working Voltage |
380V / Customizable |
| Supporting Systems |
Pulping, Forming, Drying, Automatic Stacking |
| Operation Staff |
3 - 4 persons |
| Drying Mode |
Natural drying / Industrial dryer (optional) |
| Application |
Small factories, startup enterprises, poultry industry |
Payment and delivery:
|
Delivery Time: 60 working days after getting payment
Payment Terms: 40% T/T prepayment in advance.
60% before delivery by T/T.
|
|
Warranty time
|
1-year after the Egg tray machine received.
|
|
Terms of delivery
|
Jinan Factory,China or negotiable
|
|
Time of payment
|
When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery.
|
